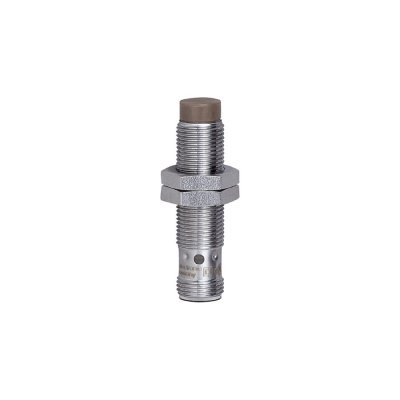

Inductive sensor

คุณสมบัติ

Product characteristics
Electrical design                   PNP
Output function                    normally open
Sensing range [mm]               7
Housing                              threaded type
Dimensions [mm]                   M12 x 1 / L = 50

Application
Special feature                     Gold-plated contacts; Increased sensing range
Application                          regular cleaning processes

Electrical data
Operating voltage [V]            10...36 DC
Current consumption [mA]      10; (24 V)
Protection class                    II
Reverse polarity protection     yes

Outputs
Electrical design                   PNP
Output function                    normally open
Max. voltage drop switching output DC [V]      2.5
Permanent current rating of switching output DC [mA]    100
Switching frequency DC [Hz]   800
Short-circuit protection          yes
Type of short-circuit protection     pulsed
Overload protection                    yes

Detection zone
Sensing range [mm]               7
Real sensing range Sr [mm]     7 ± 10 %
Operating distance [mm]        0...5.7
Increased sensing range        yes

Accuracy / deviations
Correction factor                  steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]               3...15
Switch point drift [% of Sr]     -10...10

Operating conditions
Ambient temperature [°C]      0...100
Protection                           IP 68; IP 69K; ("COP")
